Efficient waste management, water conservation, and easy maintenance.

Our aftermarket services ensure minimal downtime.

Scroll

Placeholder geometry — drop in the real model

TV1 – Toilet module

40 years of proven excellence.

TV1 – Toilet module

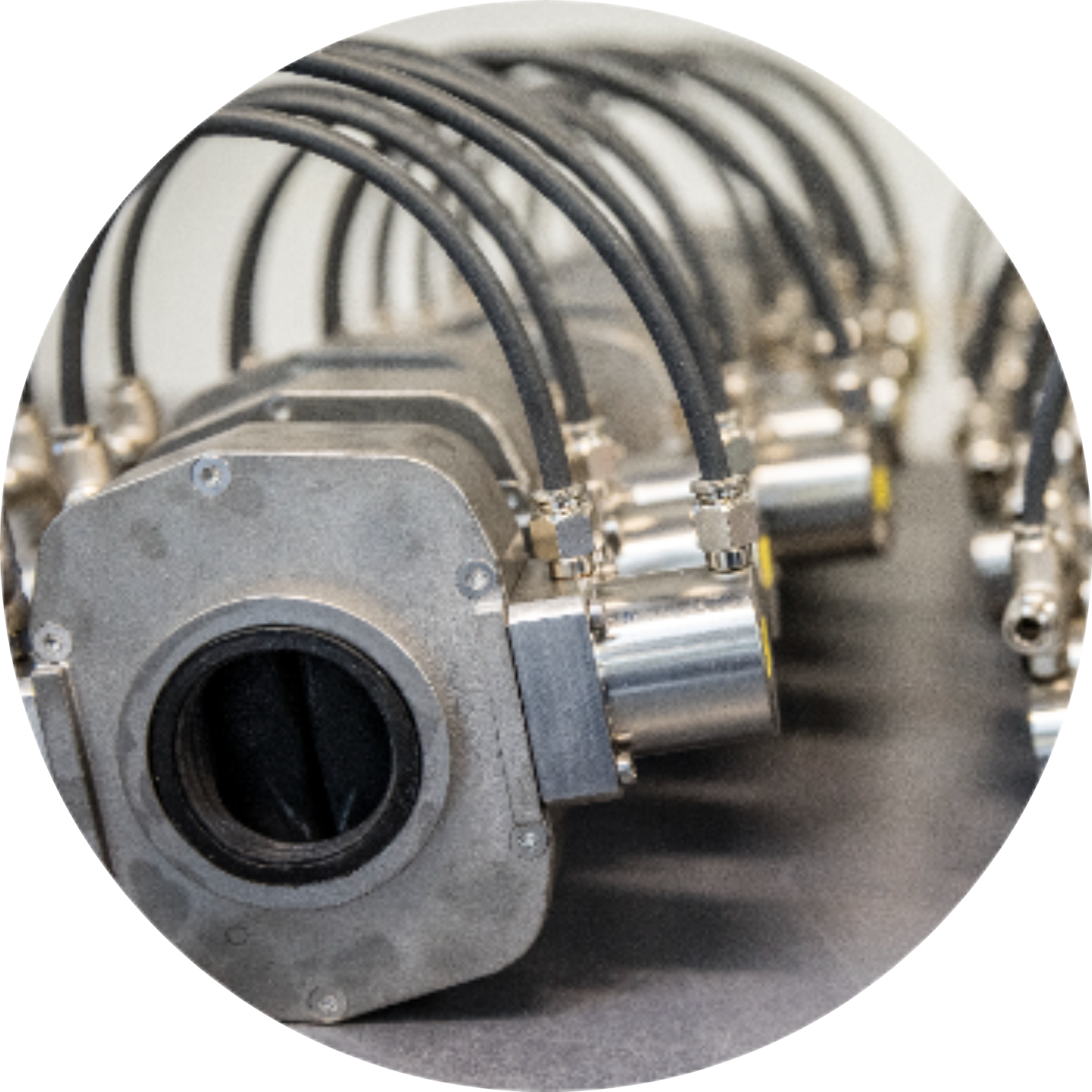

  1. TV1 Toilet Pinch Valve

    40 years of proven excellence.

    Designed specifically for railway sanitation systems, the Semvac TV1 inlet and outlet valves are built on more than 40 years of operational experience in demanding rail environments.

    The inlet valve is fitted with a Hall sensor that sends a confirmation signal to the toilet controller whenever the valve is fully closed.

    Housing
    Stainless steel
    Weight
    1.5 kg
    Working pressure
    4.5–6 bar

  2. Valve block Unit

    A highly durable electromechanical valve block specifically engineered for the Toilet Module, ensuring the safe operation of all pneumatic components.

    EN 45545 fire approved valve block. Replaceable fittings for easy maintenance. Valves can be replaced individually. 1/8″ inlet can be positioned either at the side or bottom.

    Valve block
    Aluminium
    Pilot
    PPS GF40
    End cap
    PA 66
    Weight
    1 kg
    Working pressure
    2–10 bar

  3. Semvac Ejector Unit

    Exceptionally low compressed air consumption.

    The ejector generates a vacuum inside the Primary Discharge System (PDS). The dedicated hose valve maintains the pressure required for discharge to the wastewater system, tank or bioreactor.

    Vacuum is generated only during the flush cycle. The ejector and hose valve are uniquely designed for use with the Semvac toilet module.

    Ejector and hose valve body
    PA 66 GF30

  4. Complete Flush Unit

    During flushing, a small volume of water cleans the bowl. The water pressurizer is preloaded by spring action and can therefore draw water from a reservoir located beneath the toilet module.

    The valve controls the timing and ensures that the specified volume of water is discharged into the bowl for rinsing.

    Flush valve
    Brass
    Manifold and fittings
    Nickel-plated brass
    Pressurizer
    PA 66 GF30
    Mounting bracket
    Stainless steel

The cabin

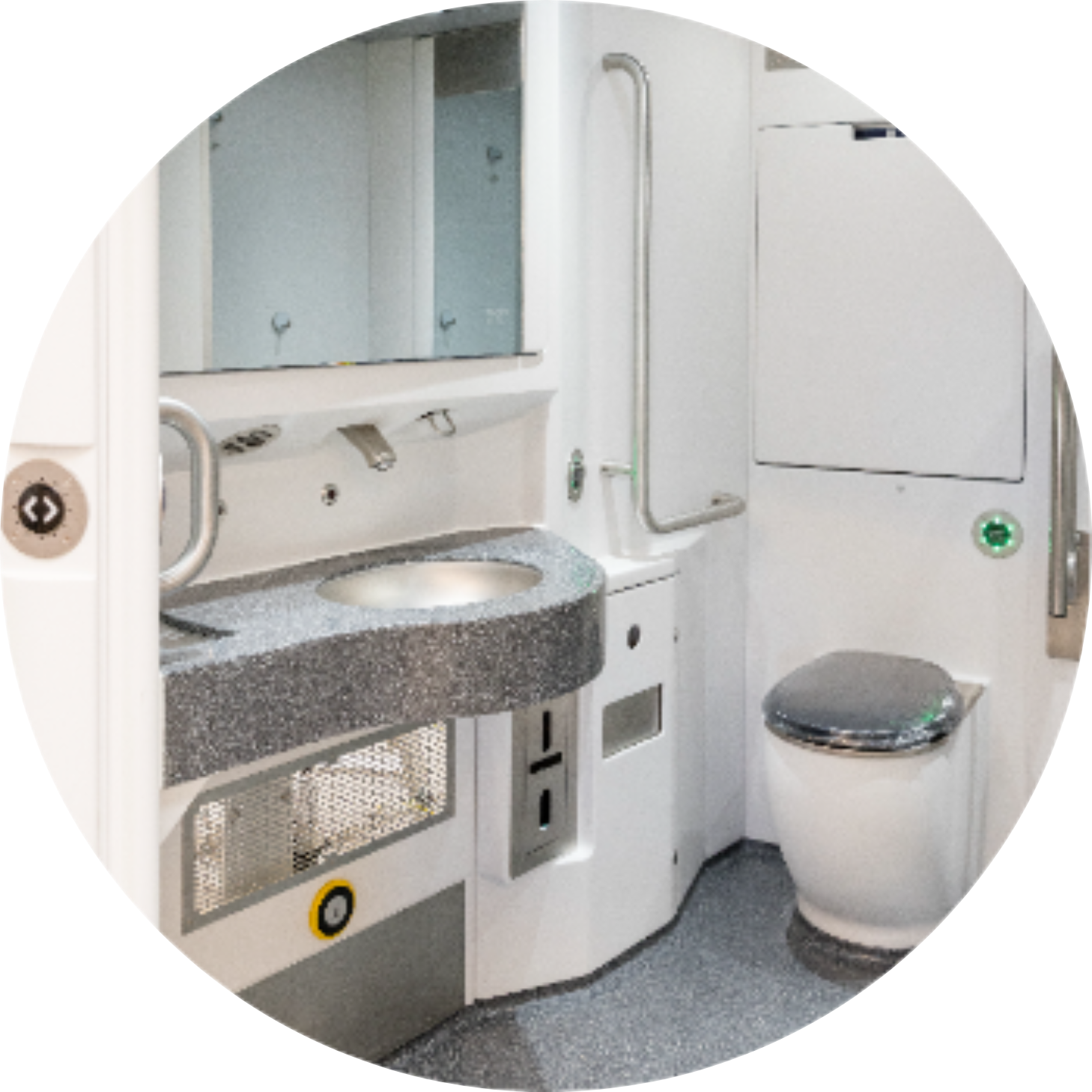

  1. Complete Sanitation Unit

    Fully integrated.

    From hygienic features to space optimization, every detail is considered to enhance the passenger experience.

    Designed and delivered directly with respect to the requirements from the car builder.

  2. Manual and Automatic doors

    Fully integrated door system.

    Complete design of an automated door system, including belt-driven rail, door leaf, controller, push buttons, and locking systems.

  3. TSI buttons and indicators

    Reliable buttons and indicators for safe and intuitive operation.

  4. Baby change table

    Robust baby changing table providing safety, comfort, and reliability.

  5. Folding grab handle (retractable handle)

    Space-saving folding grab handle for enhanced support and accessibility.

Keeps the train running.

Reliable toilet systems are essential for efficient railway operations and passenger comfort.

Replaceable in under five minutes

Replace the unit on tracks, and maintain it in the workshop. The train keeps running while the work is done.

Three years between services

The valve technology is based on the proven Semvac pinch valve concept, developed for reliable, safe operation, low maintenance requirements, and long service life.

Tested at every flush

If the valve fails to reach the correct closed position, toilet operation is automatically interrupted to prevent unsafe operation of the system.

Sealed against odour

After the cycle, both valves return to their closed position, with the Hall sensor ensuring reliable sealing and odour isolation.

References

In service in 29 countries.

A 40-year track record of delivering high-end sanitation systems, and an installed base that is constantly expanding.

What we do

Cabins, sanitary systems, controllers — and the service that keeps them running.

Five parts of the range. Each one has its own page.

A complete Semvac toilet cabin standing on the shop floor with its door open, the washbasin and the toilet visible inside.
01
A TV1 toilet module out of its cabin: the stainless bowl on its frame, with the valves, the pneumatics and the blue air lines underneath.
02
A black underhung waste water tank with its fittings, seen from one end.
03
A Semvac MK8 toilet controller: a green circuit board front with a display and a keypad in a stainless housing.
04
A Semvac technician at the service bench, testing a component with a meter in his hand.
05
  1. A complete Semvac toilet cabin standing on the shop floor with its door open, the washbasin and the toilet visible inside.

    TSI compliant cabins

    Complete cabin scope both UNI and STD. Designed for rolling stock, and TSI compliance.

    TSI compliant cabins
  2. A TV1 toilet module out of its cabin: the stainless bowl on its frame, with the valves, the pneumatics and the blue air lines underneath.

    TV1 – Toilet module

    Designed and developed for rolling stock. Unit replaceable in less than 5 minutes.

    TV1 – Toilet module
  3. A black underhung waste water tank with its fittings, seen from one end.

    Tanks and grey water systems

    On board tank racks with PE tanks. Outside underhung stainless-steel tanks.

    Tanks & grey water
  4. A Semvac MK8 toilet controller: a green circuit board front with a display and a keypad in a stainless housing.

    Controller and control panels

    Designed for rolling stock. 3 variations. Support the need for today and tomorrow.

    Semvac controllers
  5. A Semvac technician at the service bench, testing a component with a meter in his hand.

    Service, spare parts and repairs

    As the original manufacturer, we offer unmatched product expertise and direct access to technical knowledge.

    Service, spare parts & repairs
